Paul Crist Studios stocks a wide variety of the parts that were used to make up Tiffany's hanging fixtures. The examples shown here represent only some of the more common set-ups found on his standard models. Countless other configurations are possible and we can provide expert assistance in helping you to design a legitimate looking one to fit your particular need. A larger image of the fixture can be viewed by clicking on the picture.
HANGING FIXTURES

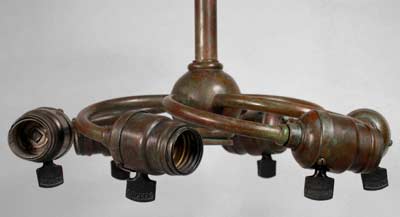

CL6
6-light Hanging Cluster
Cast Brass, suitable for 22-28" shades.
6-lights, 16" spread (with bulbs)
This is our standard cluster for large hanging shades. It is pictured with OEM Perkins sockets.

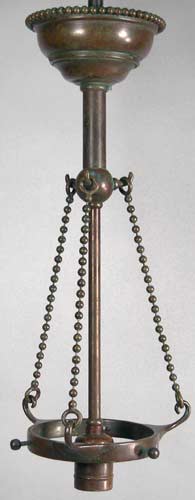

CF1
Favrile Hanging Fixture
Cast & Spun Brass
Height variable. 18" as shown.
1-light, fits most blown glass shades.
This versatile fixture is generally used to carry a blown glass Favrile globe, but it can easily be adapted to fit other smaller Tiffany shades. The shade ring can be made to fit any diameter up to about 6".

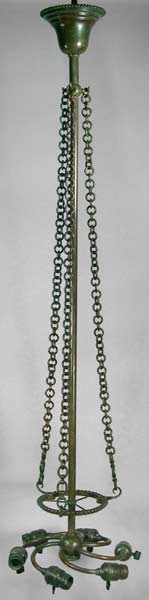

CF3
Standard 3-chain Fixture
Cast & Spun Brass
Height variable. 46" as shown.
6-lights, fits 28" cones only.
The crown on this fixture screws onto three holes in the ring of a Tiffany 28" cone. Because the hole placement varies, it is a good idea to provide us with a rubbing of the top of your ring to insure a proper fit. Shade rings for this fixture are also available.

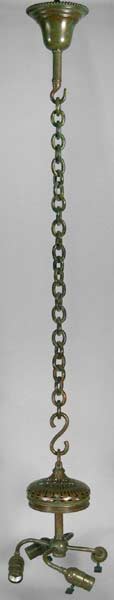

CF5
5" Ring Fixture
Cast & Spun Brass
Height variable. 58" as shown.
4-lights, fits 22-24" shades.
This fixture will fit any Tiffany shade with a standard 5" ring.
CF5T
Turban Fixture
Cast & Spun Brass
6-lights, fits shades w/ 5" ring.
This is a variation of the CF5 fixture which positions the light fairly far up in the shade. It is best suited for relatively shallow shades of deeper shades where light bulb glare is a problem, such as over a dining table.

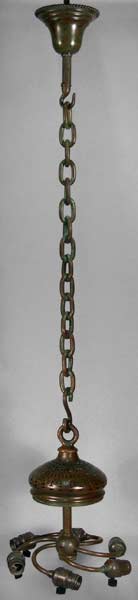

CF6
6" Ring Fixture
Cast & Spun Brass
Height variable. 56" as shown.
6-lights, fits 24-28" shades.
This fixture will fit any Tiffany shade with a standard 6" ring.

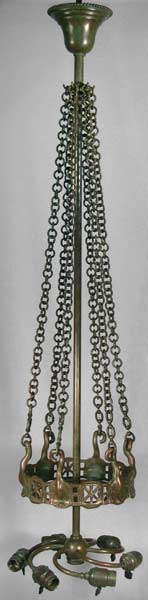

CF8
Large Cone Fixture
Cast & Spun Brass
Height variable. 68" as shown.
6-lights, fits 28" and 30" panel shades.
This fixture will fit certain Tiffany cones with an 8" aperture. Three bosses on the inside of the ring have holes thorough them that correspond to threaded holes in the shade ring.
